Water Damaged Ceiling

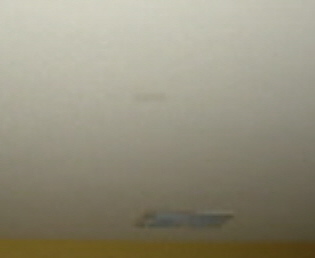

DIGITAL PHOTOGRAPH OF A WATER DAMAGED CEILING.

THIS WAS CAUSED BY A LEAKING WASHING MACHINE ON THE 2ND FLOOR.

(Notice very little visible damage)

COMPARE THIS PHOTO WITH ITS INFRARED IMAGE BELOW.

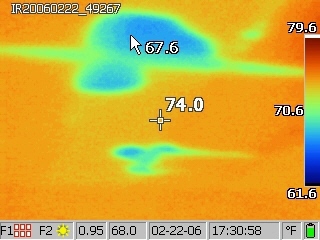

INFRARED CAMERA IMAGE OF THE SAME WATER DAMAGED CEILING.

HIDDEN MOISTURE IS SHOWN AS BLUE AND LIGHT GREEN.

Note the temperature difference between the "wet" and "dry" areas. The "wet" area is cooler and showing a temperature of 67.6F, while the "dry" areas in the orange show a temperature of 74.0F.

---

Water Damaged Wall

DIGITAL PHOTO OF A WATER DAMAGED WALL AND HARDWOOD FLOOR.

THIS IS THE BACKSIDE OF A LEAKING SHOWER.

(Notice, no visible damage)

COMPARE THIS PHOTO WITH ITS INFRARED IMAGE BELOW

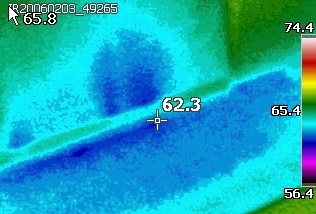

INFRARED CAMERA IMAGE OF THE SAME WATER DAMAGED WALL AND FLOOR.

HIDDEN MOISTURE IS SHOWN AS DARK AND LIGHT BLUE

Note the temperature difference between the "wet" and "dry" areas. The "wet" area is cooler and showing a temperature of 62.3F, while the "dry" areas in the green show a temperature of 65.8F.

---

Water Damaged Carpet

DIGITAL PHOTO OF WATER DAMAGED CARPET, CAUSE: SINK OVERFLOW

(Note, this carpet is dark, there are no visible signs of damage)

COMPARE THIS WITH ITS INFRARED IMAGE BELOW

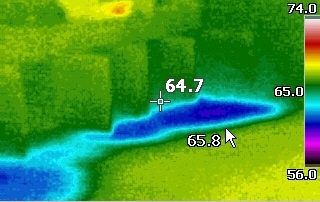

INFRARED CAMERA IMAGE OF THE SAME WATER DAMAGED CARPET

WET AREAS SHOW UP AS DARK AND LIGHT BLUE

---

Water Damaged Walls (below)

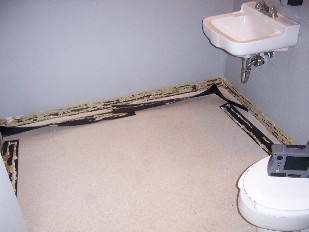

Water damaged bathroom walls caused by a leaky supply line.

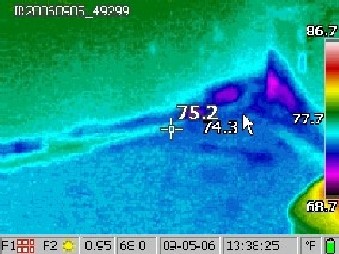

Water Damaged Wall areas in dark blue and purple.

---

Is the wall below this cabinet water damaged?

Yes,with the infrared camera you can see obvious signs of excess moisture and water damage. This was caused by a leaky pipe in the wall.

Water damaged area appears in light blue.

---

---

Miscellaneous Infrared Photos Below
